High performance in a small space for connected devices

Applications are being developed for smaller, higher performing technologies - this often means higher performance in a smaller space for design engineers

Molex is driving micro products into new markets, such as automotive and medical, offering solutions that support microminiature innovations for customers and engineers who need space savings, high-density signals, and durability in connector designs.

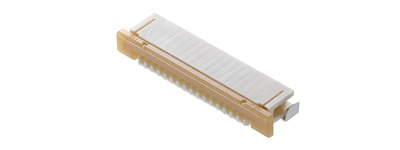

Easy-On FFC/FPC connectors

0.25mm

  • 502078 series - Right-Angle, Surface Mount, Bottom Contact Style, with Extended Actuator
  • 503300 series - Surface Mount, 1.20mm height, Top Contact, Right-Angle, Low Halogen

Buy now

0.3mm

  • LA75 504754 series provides 0.75mm low height, and top and bottom dual contacts

Buy now

0.5mm

  • One-Touch 200485 series offers auto-locking mechanism for single-step mating, and push button for easy unmating
  • FD19 series provides dual-beam contact, and front flip actuator with locking mechanism

Buy now

1mm

  • Front flip, non-ZIF and slider actuator types available

Buy now

Over 1mm

  • Flexi-Latch connector, right-angle, surface mount, positive inertia lock

Buy now

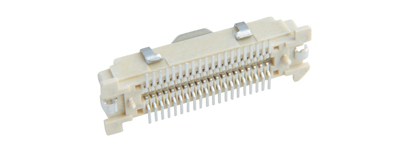

SlimStack Board-to-Board connectors

0.35mm

  • SSB RP; 3.0A Power supply: Height: 0.60 - 1.00mm; Circuits: 6-60
  • ACB6+ Full-Armor: Height: 0.60mm; Circuits: 20, 40, 50

Buy now

0.4mm

  • HRF 7S/7L: Height: 0.70mm; Circuits: 6-60
  • B8: Height: 0.80mm; Circuits: 10-50
  • T10: Height: 1.00mm; Circuits: 8-90
  • J-Bend: Height: 1.50-2.30mm; Circuits: 10-100
  • FSB: Height: 3.00-5.00mm; Circuits: 20-60
  • BB H4: Height: 4.00mm; Circuits: 24-120

Buy now

0.5mm

  • BB H1.5: Height: 1.50mm; Circuits: 16-80
  • BB H2: Height: 2.00mm; Circuits: 20-70
  • BB H2.5: Height: 2.50mm; Circuits: 16-80
  • BB H3/4: Height: 3.00-4.00mm; Circuits: 20-80

Buy now

0.635mm

  • 0.635 Rigid: Height: 6.00-16.00mm; Circuits: 20 - 240
  • 0.635 Floating: Height: 12.00-16.00mm; Circuits: 40, 60, 80

Buy now

0.8mm

  • 0.8: Height: 4.50mm; Circuits: 10 - 40
  • 0.8RA: Height: 5.65mm; Circuits: 10 - 40
  • FSR1: Height: 4.20; Circuits: 10

Buy now

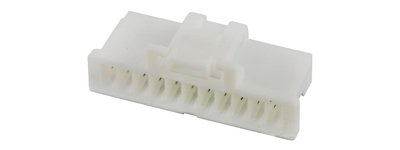

Wire-to-Board connectors

CLIK-Mate Wire-to-Board Connectors

Designed for applications that require higher pin count connectors to carry more signal lines in less space

Buy now

Micro-Lock Plus Wire-to-Board Connector System

Provides electrical and mechanical reliability in a high-temperature design; available in 1.25 and 2.00mm pitch

Buy now

PicoBlade Connector System

High-performance connectors feature both Tin and Gold-plated versions for superior flexibility, reliability and durability

Buy now

Pico-Clasp Wire-to-Board Connectors

Core 1.00mm-pitch connectors offer a versatile system that offers a variety plating and design options, ideal for nearly all applications

Buy now

iGrid Wire-to-Board Dual-Row System

2.0mm connectors that offers a compact design and anti-tangle internal lock for applications requiring good mating retention

Buy now

I/O Connectors

USB Type-C Connectors

Supports up to 5.0A current and 40 Gbps speeds, and offers waterproof, robust, reliable connectivity in consumer, industrial, and IoT applications

Buy now

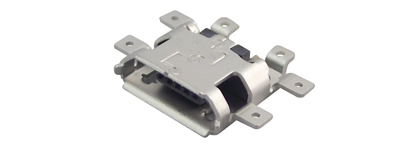

Micro-USB Connectors

Mechanically robust micro-USB connectors withstand post-solder reflow while preventing water ingression at IP67 level

Buy now

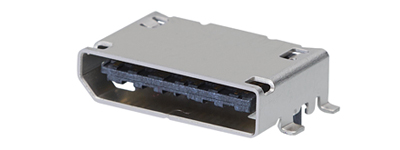

HDMI Connectors

Delivering the highest quality, high-definition content by providing an uncompressed digital connection from any audio/video source to an audio and/or video monitor over a single cable.

Buy now

HDMI Cable Assemblies

HDMI-to-HDMI cable assemblies meet the needs for uncompressed, digital audio/video interface for high-definition consumer electronics

Buy now

Nano-Pitch I/O Interconnect System

Offer industry-leading port density, multi-protocol support, and enhanced signal integrity to support PCIe’s OCuLink and SAS-4 (MiniLink) applications

Buy now

RF connectors

Microminiature

Complete RF solutions for high-frequency and superior signal integrity, even in the most demanding environments.

Buy now
