TEL0147

TEL0147 is a Gravity: digital wireless switch kit - transmit and receive. Based on 433Mhz RF communication technology, the module includes a transmitter and receiver and features the advantages of simple operation, strong penetration, and ultra-low standby power consumption. It is able to transmit digital signals and compatible with any controller that can read and write digital signals. These modules are used on a wide variety of applications that require wireless control, such as, remote control, wireless doorbell, wireless signal transmission, upgrading wired buttons to wireless buttons, etc.

• 15 button states of the transmitter
• Pairing function for the receiver
• Support one-transmit and multiple-receive
• Support one-receive and multiple-transmit
• Multiple working modes: inching, latching, self-locking, and interlocking
• Working voltage range from 3.3 to 5.0V DC
• Stable transmission distance: 15M indoor
• Transmitter size: 47 x 32mm, receiver size :37 x 32mm

Contents

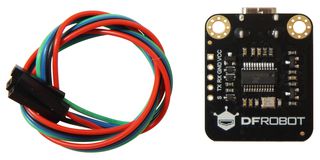

Gravity: digital wireless transmit switch x1, Gravity: digital wireless receive switch x1, Gravity: digital sensor cable x1.
