AC243009
Expansion Kit, 3 x SQI SST26VFxxx Serial Flash Daughter Boards, mikroBUS/PICtail Connectivity
Need more?
| Quantity | Price (ex VAT) |
|---|---|
| 1+ | €61.030 |
Product Information
Product Overview

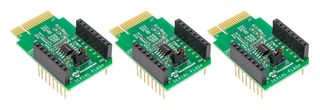

The AC243009 from Microchip is a SQI SuperFlash® Kit 1. The SQI SuperFlash Kit 1 contains three serial flash daughter boards. The serial flash daughter board is an evaluation board designed to interface with the mikroBUS™ connector on the Explorer 16/32 development board (DM240001-2). It can also interface with the PICtail™ Plus connector that is located on the Explorer 16 development board (DM240001). The box contains 3 serial flash daughter boards and each board has a SQI flash device soldered on it.
- 3 pin header provides easy access for the external power supply and power measurement capability
- Plugs into the mikroBUS connector of the Explorer 16/32 development board
- Plugs into the PICtail Plus connector of the Explorer 16 development board
- Follows published recommended usage, including decoupling capacitors
Applications
Embedded Design & Development
Contents
02-10609-4, 02-10609-5, 02-10609-6 serial flash daughter boards.
Technical Specifications
Microchip
-
-
Three Serial Flash Daughter Boards SST26VF064B, SST26VF032B, SST26WF016B
No SVHC (21-Jan-2025)
-
-
Explorer 16/32 Development Boards (DM240001, DM240001-2)
-
