RTE0T0002LKCE00000R

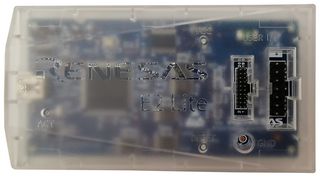

Debugger / Programmer, E2 Emulator Lite, RX, RL78 MCU Families
Image is for illustrative purposes only. Please refer to product description.
189 In Stock
150 more incoming. You can reserve stock now
EXPRESS Delivery in 1-2 business days
Order before 5pm
FREE Delivery Available
on orders €0.00 and over
Accurate delivery times will be calculated in Checkout
| Quantity | Price (ex VAT) |
|---|---|
| 1+ | €55.810 |
Price for:Each
Minimum: 1
Multiple: 1
€55.81 (ex VAT)
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerRENESAS
Manufacturer Part NoRTE0T0002LKCE00000R
Order Code2946743
Technical Datasheet
IC Product TypeOn-Chip Debug Emulator
Silicon Family NameRX, RL78, RA
Core Architecture-
Core Sub-Architecture-
Product Range-
Product Overview
RTE0T0002LKCE00000R E2 emulator Lite is an on-chip debugging emulator and flash programmer for MCUs of the RX, RA, RL78 Families and RISC-V MCU. This model provides standard debugging functions at low cost, and is suitable for a wide range of situations, such as education, initial evaluation, and full-scale product development.
- USB 2.0, full speed PC interface
- Operating voltage range: 1.8V to 5.5V (depends on the target MCU)
- Power supply from emulator - supply current: up to 200mA, supply voltage: 3.3V only
- External dimension (except for the protruding parts): 96.2mm×52.7mm×17.2mm
- Compliance European standards: EN 55022 class A, EN 55024, US FCC standard: FCC part 15 Class A
- Affordable yet powerful debugger functionality that meets actual development needs
- Also usable as an on-board programmer
- Supports serial, JTAG, and SWD communications interfaces
Contents
E2 emulator Lite main unit, USB interface cable, User system interface cable.
Technical Specifications
IC Product Type
On-Chip Debug Emulator
Core Architecture
-
Kit Contents
E2 Emulator Lite Main Unit, USB I/F Cable, User's I/F cable
Product Range
-
Silicon Family Name
RX, RL78, RA
Core Sub-Architecture
-
Features
On-Chip Debugging, Flash Memory Programming
SVHC
No SVHC (21-Jan-2025)
Legislation and Environmental
Country of Origin:
Country in which last significant manufacturing process was carried outCountry of Origin:Vietnam
Country in which last significant manufacturing process was carried out
Country in which last significant manufacturing process was carried outCountry of Origin:Vietnam
Country in which last significant manufacturing process was carried out
Tariff No:90308200
US ECCN:EAR99
EU ECCN:NLR
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (21-Jan-2025)
Download Product Compliance Certificate
Product Compliance Certificate
Weight (kg):.155128
