LS02-1B66-PP-500W
Float Switch, LS02 Series, Vertical, SPST-NC, Polypropylene, 10 W, 200 Vdc

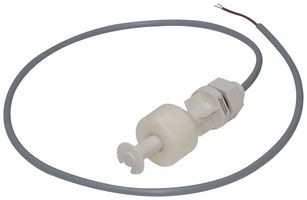

Image is for illustrative purposes only. Please refer to product description.
ManufacturerSTANDEXMEDER
Manufacturer Part NoLS02-1B66-PP-500W
Order Code1079490
Product RangeLS02 Series
Technical Datasheet
543 In Stock
Need more?
.
.
FREE Delivery Available
on orders €0.00 and over
Accurate delivery times will be calculated in Checkout
| Quantity | Price (ex VAT) |
|---|---|
| 1+ | €22.570 |
| 10+ | €14.420 |
| 25+ | €11.540 |
| 50+ | €10.620 |
| 100+ | €10.410 |
Price for:Each
Minimum: 1
Multiple: 1
€22.57 (ex VAT)
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
ManufacturerSTANDEXMEDER
Manufacturer Part NoLS02-1B66-PP-500W
Order Code1079490
Product RangeLS02 Series
Technical Datasheet
Level Switch TypeLevel Sensor
Media TypeLiquid
Process Connection Type-
Operating Pressure Max-
Housing MaterialPP (Polypropylene)
Switch OutputSPST-NO
Electrical ConnectionCable
Supply Voltage Min-
Supply Voltage Max-
Operating Temperature Max80°C
Product RangeLS02 Series
Product Overview
The LS02-1B71-PP-500W is a Standard Liquid Level Sensor has to be mounted vertically for best results. Polypropylene material used for water applications and dilute acids. The standard termination is a PVC cable with a cross section of 0.14mm² and a length of 500mm.
- High power
- 10W Contact rating
- 0.5A Switching current maximum
- 150mΩ Static contact resistance (maximum)
- 1012Ω Insulation resistance
- M10 x 1,0 Connection
Applications
Sensing & Instrumentation, Automotive, Test & Measurement, Automation & Process Control
Technical Specifications
Level Switch Type
Level Sensor
Process Connection Type
-
Housing Material
PP (Polypropylene)
Electrical Connection
Cable
Supply Voltage Max
-
Product Range
LS02 Series
Media Type
Liquid
Operating Pressure Max
-
Switch Output
SPST-NO
Supply Voltage Min
-
Operating Temperature Max
80°C
Technical Docs (2)
Legislation and Environmental
Country of Origin:
Country in which last significant manufacturing process was carried outCountry of Origin:Germany
Country in which last significant manufacturing process was carried out
Country in which last significant manufacturing process was carried outCountry of Origin:Germany
Country in which last significant manufacturing process was carried out
Tariff No:90261089
US ECCN:EAR99
EU ECCN:NLR
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:To be advised
Download Product Compliance Certificate
Product Compliance Certificate
Weight (kg):.0184
