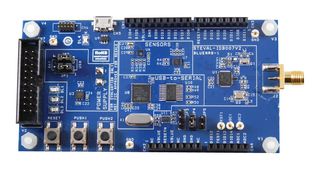

STEVAL-IDB007V2
Evaluation Board, BlueNRG-1 Bluetooth SoC, V5.0, Arduino Shield Compatible
Image is for illustrative purposes only. Please refer to product description.
ManufacturerSTMICROELECTRONICS
Manufacturer Part NoSTEVAL-IDB007V2
Order Code2855565
Technical Datasheet
4 In Stock
Need more?
1-2 Working Days Delivery
Order before 17:00 standard shipping
| Quantity | Price (ex VAT) |
|---|---|
| 1+ | €61.810 |
Price for:Each
Minimum: 1
Multiple: 1
€61.81 (ex VAT)
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerSTMICROELECTRONICS
Manufacturer Part NoSTEVAL-IDB007V2
Order Code2855565
Technical Datasheet
Silicon ManufacturerSTMicroelectronics
Silicon Core NumberBlueNRG-1
Kit Application TypeWireless Connectivity
Application Sub TypeBluetooth Low Energy, SoC
Kit ContentsEval Board BlueNRG-1
Product Range-
SVHCNo SVHC (21-Jan-2025)
Product Overview
Evaluation platform based on the BlueNRG-1 low power Bluetooth® smart system on chip, compliant with the Bluetooth® specification.
- Associated BlueNRG-1 development kit SW package including firmware and documentation
- Up to +8dBm available output power (at antenna connector)
- Excellent receiver sensitivity (-88dBm)
- 7.7mA RX and 8.2mA TX at +0dBm very low power consumption
- New integrated balun BALF-NRG-02D3 which integrates a matching network and harmonics filter
- SMA connector for antenna or measuring equipment
- 3 user LEDs, 2 user buttons, 3D digital accelerometer, 3D digital gyroscope, JTAG debug connector
- MEMS pressure sensor with embedded temperature sensor
- USB to serial bridge for providing I/O channel with the BlueNRG-1 device
Technical Specifications
Silicon Manufacturer
STMicroelectronics
Kit Application Type
Wireless Connectivity
Kit Contents
Eval Board BlueNRG-1
SVHC
No SVHC (21-Jan-2025)
Silicon Core Number
BlueNRG-1
Application Sub Type
Bluetooth Low Energy, SoC
Product Range
-
Technical Docs (1)
Legislation and Environmental
Country of Origin:
Country in which last significant manufacturing process was carried outCountry of Origin:Italy
Country in which last significant manufacturing process was carried out
Country in which last significant manufacturing process was carried outCountry of Origin:Italy
Country in which last significant manufacturing process was carried out
Tariff No:84733020
US ECCN:5A002.a.2
EU ECCN:5A002.a.2
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (21-Jan-2025)
Download Product Compliance Certificate
Product Compliance Certificate
Weight (kg):.0078
