7-338069-8
PCB Receptacle, Board-to-Board, 1.27 mm, 1 Rows, 8 Contacts, Surface Mount, Micro-MaTch
Precisa de mais?
| Quantidade | |
|---|---|
| 1+ | 2,390 € |
| 22+ | 1,730 € |
| 67+ | 1,720 € |
| 180+ | 1,400 € |
| 450+ | 1,370 € |
Informação do produto
Descrição geral do produto

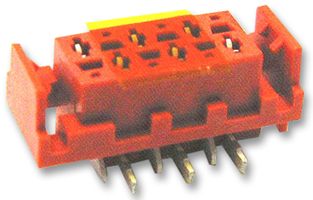

The 7-338069-8 is a 8-way 1-row Vertical Female-on-board Ribbon Cable Receptacle with tin over nickel plated copper alloy contacts and tin over nickel plated solder tail. This Micro-MaTch series connector comes with red polyester-GF housing. The Micro-MaTch contact helps prevent fretting corrosion, the traditional failure mode in tin-plated connections. Relative movements caused by vibrations/thermal expansion between male and female contacts are absorbed by an additional positioning spring in the female part. By preventing movements on the contact spot, a gas tight connection can make the Micro-MaTch contact spring system fretting corrosion resistant.
- UL94V-0 Flammability rating
- 100VDC Voltage rating
- 1000MΩ Insulation resistance
- -30 to +105°C Operating temperature range
Aplicações
Industrial
Especificações Técnicas
Board-to-Board
1Rows
Surface Mount Straight
Micro-MaTch
Tin Plated Contacts
1.27mm
8Contacts
Surface Mount
Phosphor Bronze
No SVHC (21-Jan-2025)
Documentação técnica (4)
Legislação e Ambiente
País onde se realizou a maior parte do processo de produçãoPaís de origem:Germany
País onde se realizou a maior parte do processo de produção
RoHS
RoHS
Certificado de conformidade de produto
