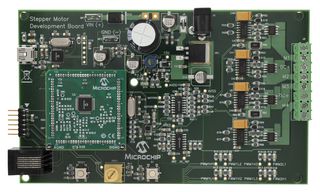

DM330022-1
DEV BOARD, MOTOR CONTROL STEPPER MOTOR
Precisa de mais?
| Quantidade | |
|---|---|
| 1+ | 274,420 € |
Informação do produto
Descrição geral do produto
dsPICDEM™ MCSM Development Board is targeted to control both unipolar and bipolar stepper motors in open-loop or closed-loop (current control) mode. The hardware is designed in such a way that no hardware changes are necessary for 8-, 6- or 4-wire stepper motors in either bipolar or unipolar configurations. Software to run motors in open-loop or closed-loop with full or variable micro-stepping is provided. A GUI for controlling step commands, motor parameter input, and operation modes is included. This flexible and cost-effective board can be configured in different ways for use with Microchip’s specialized dsPIC33 Motor Control Digital Signal Controllers (DSCs).
- dsPICDEM MCSM Development Board supports terminal voltages up to 80V and currents up to 3A
- dsPIC33C device uses MOSFET driver to drive two full-bridge inverters that power the motor windings
Conteúdo
dsPICDEM MCSM development board, dsPIC33CK64MP105 PIM, USB-to-mini-USB cable, Screwdriver.
Especificações Técnicas
Microchip
Motor Control
dsPIC
dsPIC33CKxxMP1xx
-
dsPIC33CK64MP105
Stepper Motor Control
dsPIC33
MCSM Dev Board dsPICDEM, dsPIC33CK64MP105 Plug-In-Module, USB-to-mini-USB Cable, Screwdriver
No SVHC (21-Jan-2025)
Documentação técnica (1)
Legislação e Ambiente
País onde se realizou a maior parte do processo de produçãoPaís de origem:China
País onde se realizou a maior parte do processo de produção
RoHS
RoHS
Certificado de conformidade de produto
