STEVAL-MKI187V1
Evaluation Board, 96Boards Argonkey Mezzanine Board, Linaro, ST Sensor Hub Platform
Contactem-me quando voltar a existir em stock
| Quantidade | |
|---|---|
| 1+ | 28,650 € |
Informação do produto
Descrição geral do produto

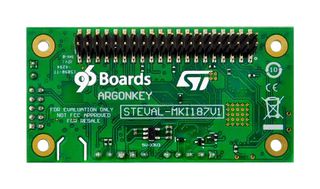

STEVAL-MKI187V1 is a ArgonKey mezzanine board based on different ST sensors. This mezzanine board (also referred to as 96Boards Argonkey) is designed according to the Linaro specification. The board acts as a sensor hub platform for all 96Boards compliant products. The board can be used as a standalone board or connected to the HiKey (LeMaker) board from 96Boards. The board has two buttons (Reset and user) and several LEDs that are appropriately positioned for IoT hardware applications. The mounted ST MEMS sensors are LSM6DSL 6-axis inertial module, LIS2MDL magnetic sensor, LPS22HB pressure sensor, HTS221 humidity and temperature sensor, MP34DT05-AMicrophone.
- Features VL53L0X gesture detector
- Based on STM32F412C microcontroller
Notas
Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
Especificações Técnicas
Accelerometer, Gyroscope, Humidity, Magnetometer, Pressure, Temperature
No SVHC (21-Jan-2025)
ArgonKey mezzanine board LSM6DSL, LIS2MDL, LPSS22HB, HTS221, MP34DT05-A, VL53L0X
