NBT2000A8K0T4SHLDV1TOBO1

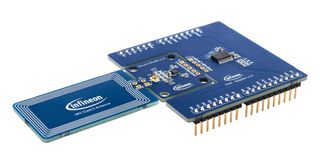

NBT2000A8K0T4SHLDV1TOBO1 is a NFC I2C bridge tag shield for Arduino UNO-compatible MCU boards. The OPTIGA™ Authenticate NBT Development Shield bundle is ideal for evaluation and application development of OPTIGA™ Authenticate NBT using custom MCU boards. The shield's default adapter enables easy attachment to Arduino UNO-compatible MCU boards. This is a quick and easy option for adapting and evaluating reference applications and host libraries.

• Attach to your Arduino UNO board, detachable shield sections, default pre-tuned Class 5 antenna
• Bundled pre-tuned Class 6 antenna
• Antenna matching guide and adopt, build and execute use cases
• Easy adaptable reference use cases, ready for embedded applications, fully supported NFC Type 4 tag
• Preloaded chip-unique certificate, config via NFC & I2C interface, Global Platform T=1' I2C protocol
• Accelerated application development, directly attachable to Arduino UNO
• Class 5 & Class 6 PCB antenna, highly customizable shield design
• Easy integration with different MCU, reference applications on GitHub
• Easy porting using PAL and Host libraries in C, Java and swift

Conteúdo

OPTIGA™ authenticate NBT shield, Host MCU board adapter, Arduino UNO-compatible, connected to the OPTIGA™ Authenticate NBT Shield per default, Additional accessories( Class 6 shield antenna, Cables: UMCC cable and five-pin jumper cable).
