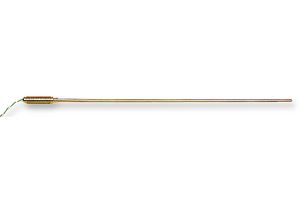

KMI/1.5X500 (IEC)

The KMI series IEC Mineral Insulated Thermocouples. 310 stainless steel models have good corrosion and oxidation resistance to suit a wide range of processes, satisfactorily operates in sulphur bearing atmosphere and typical applications include brick & cement klins, glass industry, heat treatment & annealing furnaces power stations, flues, heat exchangers etc. Inconel® Alloy 600 sheath models have excellent oxidation resistance to 1100°C and typical applications include heat treatment processes, annealing furnaces, chemical reactors, man-made fibre and synthetic fibre production, steam boilers, paper industry etc.

• Mineral insulated type K or N thermocouple
• Choice of 310 stainless steel or Inconel® alloy 600 sheath
• Highly flexible, sheath can be bent/formed to suit many applications and processes
• Insulated hot junction
• Probe temperature range -40°C to 1100°C
• M8 x 1mm fine pitch threaded pot seal (200°C)
• 100mm Tails
• PFA twin twisted 7/0.2mm
• Colour coded to IEC 584

Aplicações

Sensing & Instrumentation, Industrial

Notas

In addition, we have calibration services for this product (Europe Only). Visit our calibration service page to see details of what options are available.
