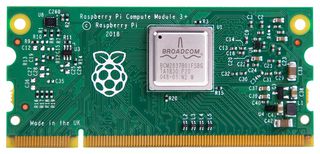

CM3+/LITE

The Raspberry Pi Compute Module 3 + Lite (CM3+ Lite) are a DDR2-SODIMM-mechanically-compatible System on Modules (SoMs) containing a processor, memory, and supporting power circuitry. These modules allow a designer to leverage the Raspberry Pi hardware and software stack in their own custom systems and form factors. In addition the modules have extra I/O interfaces over and above what is available on the Raspberry Pi model A/B boards, providing more options and fostering rapid development for the designer. The Compute Module 3 + has a 200 pin SODIMM design. The Compute Module 3 + Lite can be interfaced with external eMMC devices or SD Cards.

• Broadcom BCM2837B0 Cortex-A53 64-bit 1.2GHz SoC
• 1GB LPDDR2 SDRAM Memory
• Production life guaranteed until January 2024
• H.264, MPEG-4 decode (1080p30), H.264 encode (1080p30), OpenGL ES 1.1, 2.0 graphics
• Compatible with NOOBS_3_0_0
• The CM3+ Lite brings the SD card interface to the module allowing connection to an SD Card or eMMC flash device

Aplicações

Embedded Design & Development, Electronics Design, Industrial, IIoT (Industrial Internet of Things), IoT (Internet of Things)
